Custom Electrical Insulators: Shape Freedom and Scenario-Driven Solutions

These custom electrical insulators boast two primary functions that are vital for ensuring the proper and safe operation of electrical systems. The first function is to prevent electrical leakage or short circuits, which can lead to equipment failure or hazards. The second job is to support and protect the electrical parts, keeping them safe and in the right place. They act as a safety barrier and safeguard against electrical issues.

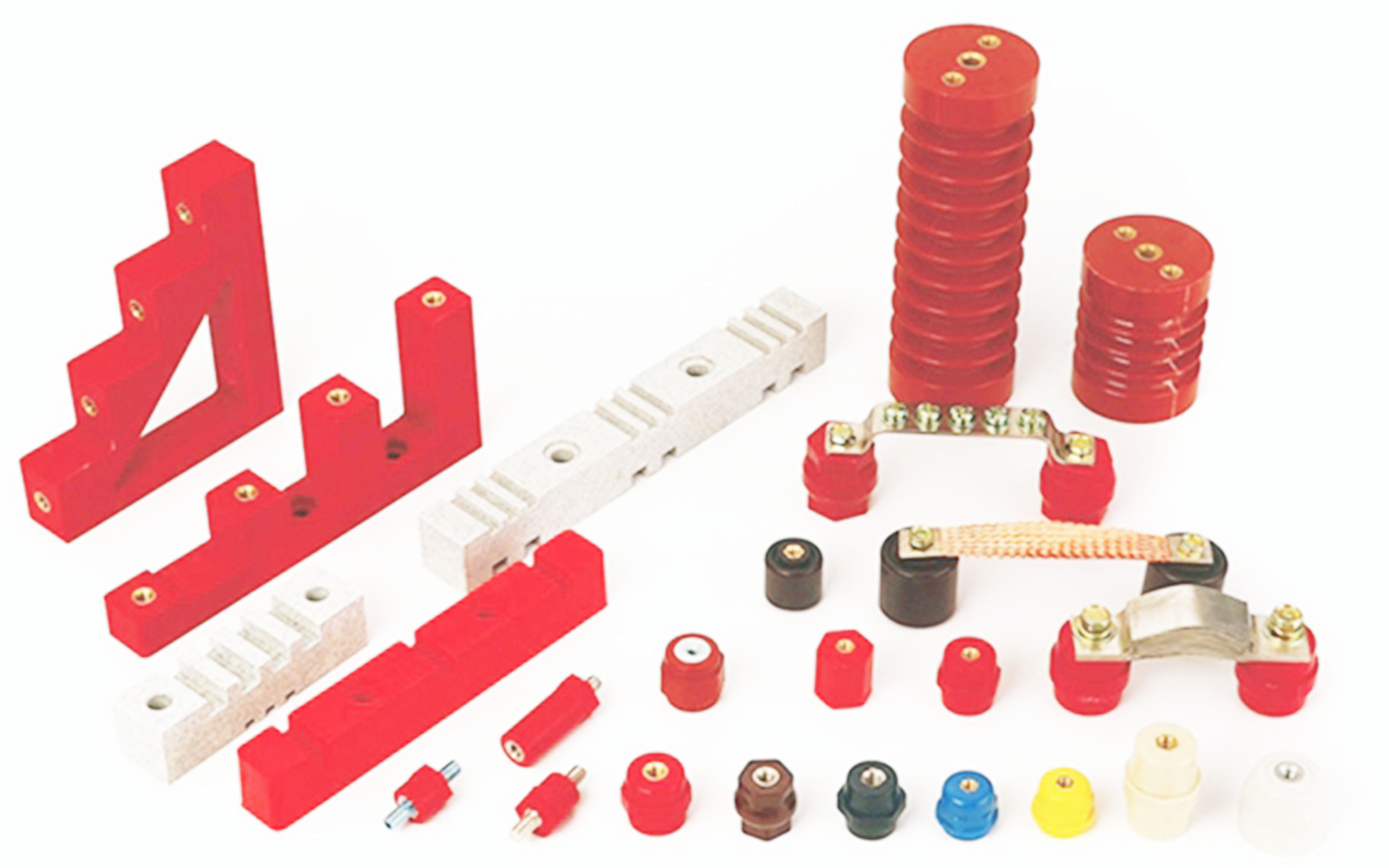

For many years, people have mostly associated low-voltage insulator with the typical round or square composite shapes. Few realize that customized insulators don’t have to be confined to standard molds—they can come in diverse forms like regular polygons, cylinders, or even tailor-made designs for special requirements. As long as there’s demand in low-voltage environments, professional insulator design and insulator manufacturing can deliver precisely tailored solutions. This "shape freedom" of custom electrical insulators is transformative, elevating low-voltage insulators from simple components to specialized, high-value elements that offer a strong competitive edge across industries.

Scenario-Driven: Shape Designed for Precise Needs

For example, outdoor low-voltage distribution lines in courtyard lighting or solar energy systems typically use umbrella-shaped composite low-voltage insulator. Their shed design efficiently channels rain and snow, while optimized spacing prevents dust and pollution buildup—making them ideal for outdoor applications ranging from 0.4kV to 10kV.

When it comes to internal wiring insulation in precision industrial machines, compact square or flat customized insulators excel. Engineered for space efficiency, they provide stable line support and ensure electrical isolation for small-space applications such as control cabinets, switchgear, and motor terminal boxes, preventing short circuits caused by tangled wires.

In special projects like port terminals and underground tunnels—where humidity and dust are prevalent—custom electrical insulators with bell-shaped designs enhance performance. Adjusting the shed shape to a 120° curve and setting spacing to 8mm boosts anti-pollution flashover performance by over 30% compared to standard products. These designs also precisely match unique mounting angles and connection interfaces on tunnel supports and equipment terminals.

A more representative example lies in low-voltage energy storage cabinets and small EV charging stations. Battery and charging modules are often tightly packed with curved profiles, so customized insulators are crafted to fit these contours seamlessly. While maintaining insulation strength for voltages under 10kV, they save up to 20% installation space for core components.

Core Capabilities: Full-Chain Control of the Customization Process

The "shape freedom" of custom electrical insulators involves more than just changing molds. It is a meticulous process encompassing insulator design, material selection, insulator manufacturing, and rigorous testing.

First, engineering teams review customer-provided details, including area size, load requirements, temperature and humidity conditions, and the required insulation class (ranging from 0.4kV to 10kV). Leveraging insulator design expertise, engineers use SolidWorks for 3D modeling and ANSYS for simulations to verify performance under harsh conditions like low voltage, strong vibrations, and temperature fluctuations. This ensures key metrics such as insulation resistance and mechanical strength remain uncompromised during shape customization.

At a large electronics factory, the team required a low-voltage insulator for a reactor vessel with a round outer wall and an operating temperature of 200°C. Standard cylindrical insulators failed to fit properly and lacked adequate heat dissipation. After three simulation iterations, the insulator design team developed a custom-shaped insulator with an arc-shaped groove—it matched the vessel’s contour perfectly and increased heat dissipation area by 35%, solving the high-temperature insulation challenge.

Material Synergy: Precision Matching of Shape and Material

Given the vast differences in low-voltage application requirements, shape customization alone cannot deliver optimal performance—material properties must be co-designed for custom electrical insulators. In high-vibration environments (such as low-voltage motors operating at 3,000 RPM), standard materials may fail due to vibration stress. Custom short-post low-voltage insulator made from methyl vinyl silicone rubber offer superior toughness; their compact design increases vibration fatigue resistance by 40%, ensuring reliable insulation during continuous vibration.

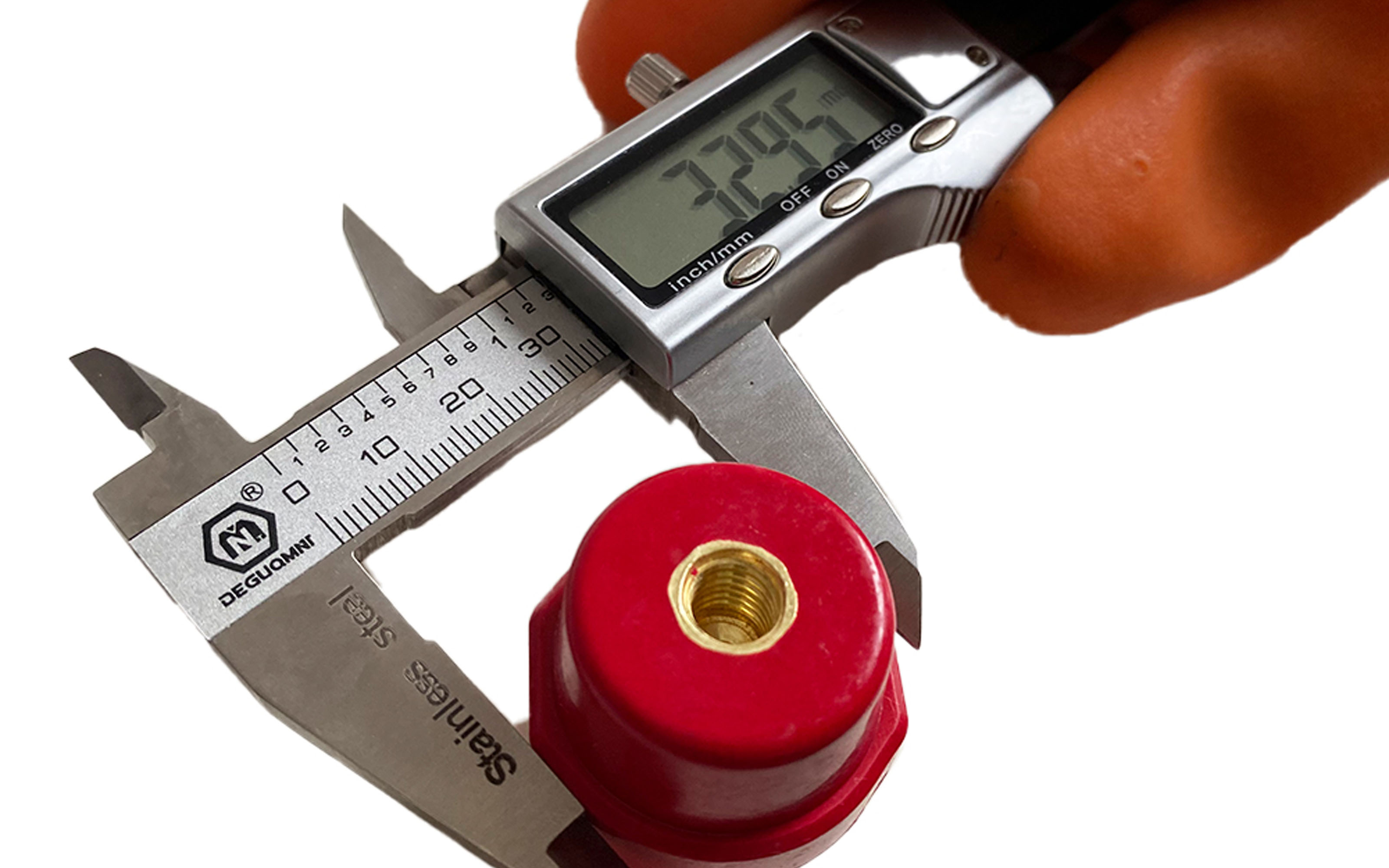

In small low-voltage switchgear systems with tight spaces and closely routed cables, strip-shaped customized insulators made from high-strength epoxy resin are widely used. Their flat profile minimizes space usage, while epoxy resin’s inherent strength withstands mechanical loads. During insulator manufacturing, five-axis CNC machining achieves precision within ±0.1mm—even for complex shapes and precision mounting areas. Automated demolding and polishing ensure every custom electrical insulator meets designated dimensions perfectly, eliminating the need for on-site rework.

Quality Assurance: Performance Undiminished Despite Shape Variation

A major customer concern with customized insulators is whether non-standard shapes compromise core insulation performance. Our stance remains consistent: performance first, shape serves performance. Right from the start, all custom designs adhere to non-negotiable principles centered on three core metrics—insulation performance, mechanical strength, and environmental resilience. All shape adjustments are made to enhance these, never to reduce standards.

Each custom electrical insulator undergoes 12 rigorous tests before shipment:

• Insulation Resistance Test: Must exceed 5000 MΩ (well above the national low-voltage standard of 3000 MΩ)
• Dielectric Withstand Test: Must endure twice the rated voltage for one minute without breakdown
• Mechanical Load Test: Must withstand 1.5 times the designed load
• Thermal Cycling Test: Must maintain stable performance after 20 cycles between -40°C and +80°C

A small solar power plant ordered a set of "L-shaped" customized insulators for its rotating tracker supports. Third-party testing confirmed insulation resistance exceeding 6000 MΩ. After three years of operation in harsh desert conditions (ranging from -35°C to +75°C), none of the products showed signs of malfunction or damage—proving they are just as reliable as standard low-voltage insulator.

Conclusion

We specialize in low-voltage insulator solutions for diverse needs—from outdoor garden lights and industrial equipment to desert solar farms and coastal port lighting. Each low-voltage insulator is meticulously designed for its specific application, reflecting our deep understanding of scenario-specific requirements and our expertise in insulator design, material science, and insulator manufacturing.

In our custom low-voltage insulator services, we reject "fixed templates" and focus on perfect alignment with each customer’s unique needs. This is the core value that sets customized insulators apart from traditional products.

Whether you need simple shapes for everyday use or specialized designs for extreme conditions, share your requirements with us. Our team will handle the entire process—from insulator design and material selection to insulator manufacturing oversight—turning your custom shape idea into a trusted low-voltage product. Let low-voltage insulators become truly tailored "dedicated insulation guardians" for countless industrial applications.
